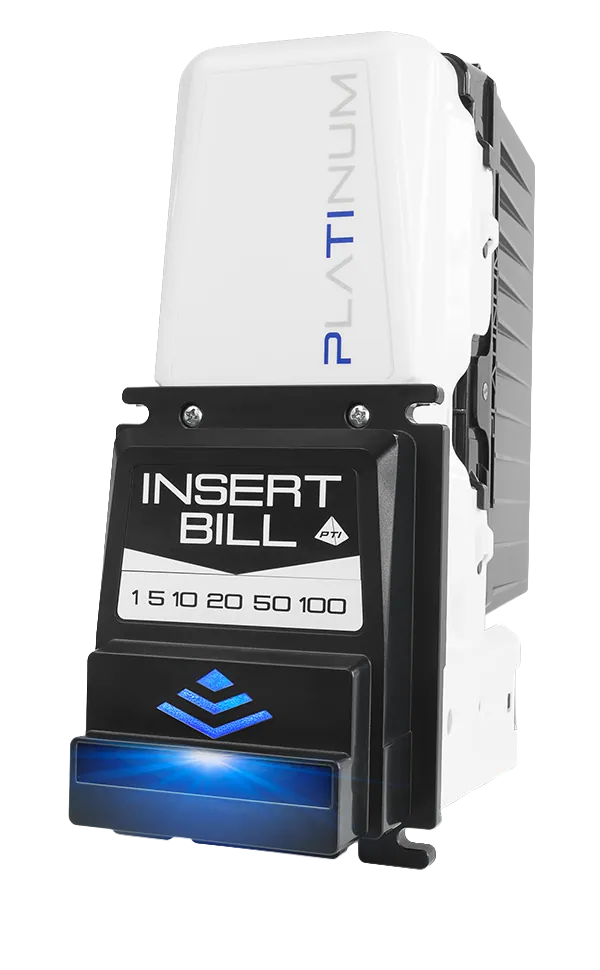

Pyramid Platinum PT1-LB1-USA Bill Acceptor 12V DC
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
- 30+ years serving operators
- Real technical support by phone
- Fast U.S. shipping
Description
Looking for a bill acceptor you can count on? The Pyramid Platinum PT1-LB1-USA Bill Acceptor 12V DC from Pyramid Technologies is in stock at E&D Trading and backed by our in-house technical support.
The Pyramid Platinum PT1-LB1-USA is Pyramid Technologies' next-generation bill acceptor, built for 24/7 duty in amusement, skill game, kiosk, gaming, and vending equipment. This version runs on standard 12 VDC power, the most common setup for skill games and amusement cabinets. It accepts $1, $5, $10, $20, $50, and $100 bills and stacks them into a lockable 500-note cash box.
Platinum does away with DIP switches and configuration cards. Firmware and settings load from a USB flash drive or a PC, and the unit keeps them even when power is removed. Internal sensors auto-calibrate, so it never needs manual calibration.
Key features
- Accepts $1–$100 US bills, with an acceptance rate above 95% and roughly 27 bills per minute
- Dual-stage optical anti-stringing plus an integrated mechanical anti-stringing lever
- UV (ultraviolet) LED validation for stronger counterfeit detection
- Lockable, removable 500-note cash box (the "L" and "B" in the model number)
- Lighted bezel and lighted bill entry
- Firmware and configuration updates by USB flash drive or PC; no DIP switches
- Removable bill path for easy cleaning, plus push-button/LED and PC-based diagnostics
- Harness pinouts often compatible with other manufacturers' bill acceptors
- 12 VDC power and I/O through the 18-pin connector; credit output is an open-collector transistor (5–12 VDC, 40 mA max)
- Made in the USA, backed by Pyramid's 2-year parts and labor warranty
Communication
Supports standard pulse, always-enabled pulse, Mars-style 600-baud serial, RS-232 (through the 18-pin harness), and RS-232 over the rear USB Type-B port. The interface is set by the configuration file, either at the factory or through Platinum Tools.
Specifications
| Model | PT1-LB1-USA |
| Series | Pyramid Platinum (PT1) |
| Power | 12 VDC ±10% |
| Current draw | 150 mA idle, 2.2 A max operating |
| Interfaces | Pulse, Mars 600-baud serial, RS-232, USB (RS-232 over USB) |
| Bills accepted | $1, $5, $10, $20, $50, $100 (USA) |
| Cash box | Lockable, 500 notes |
| Acceptance rate | Greater than 95% |
| Acceptance speed | About 27 bills per minute |
| Operating temperature | 0–60 °C, 90% max non-condensing humidity |
| Net weight | 2.45 lb (1.11 kg) |
| Warranty | 2 years, parts and labor (manufacturer) |
Reading the model number
Platinum part numbers follow the pattern PT1-[cash box type][capacity][power]-[country]. In PT1-LB1-USA: L = locking cash box, B = 500-note capacity, B = 12 VDC power, and USA = US currency.
Setup and support
Because settings come from a configuration file, confirm your machine type when ordering so the unit can be set up for your application. Step-by-step guides: How to update Platinum firmware and How to load a Platinum configuration file. Pyramid's free Platinum Acceptor Tools software and the Platinum Installation & Operation Manual are available from Pyramid.
See the full lineup in our Pyramid Platinum (PT1) collection.
Product details
| Brand | Pyramid Technologies |
|---|---|
| Category | Bill Acceptor |
| Part number / SKU | PT1-LB1-USA |
| Compatible with / keywords | Bill Acceptors, PT1, Pyramid Bill Acceptors |
