MEI SCNM6604 OPTO SC Advance Note Validator Unit Pack
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
- 30+ years serving operators
- Real technical support by phone
- Fast U.S. shipping
Description
The MEI SCNM6604 OPTO SC Advance Note Validator Unit Pack is a proven bill acceptor from MEI, available now through E&D Trading with fast nationwide shipping.

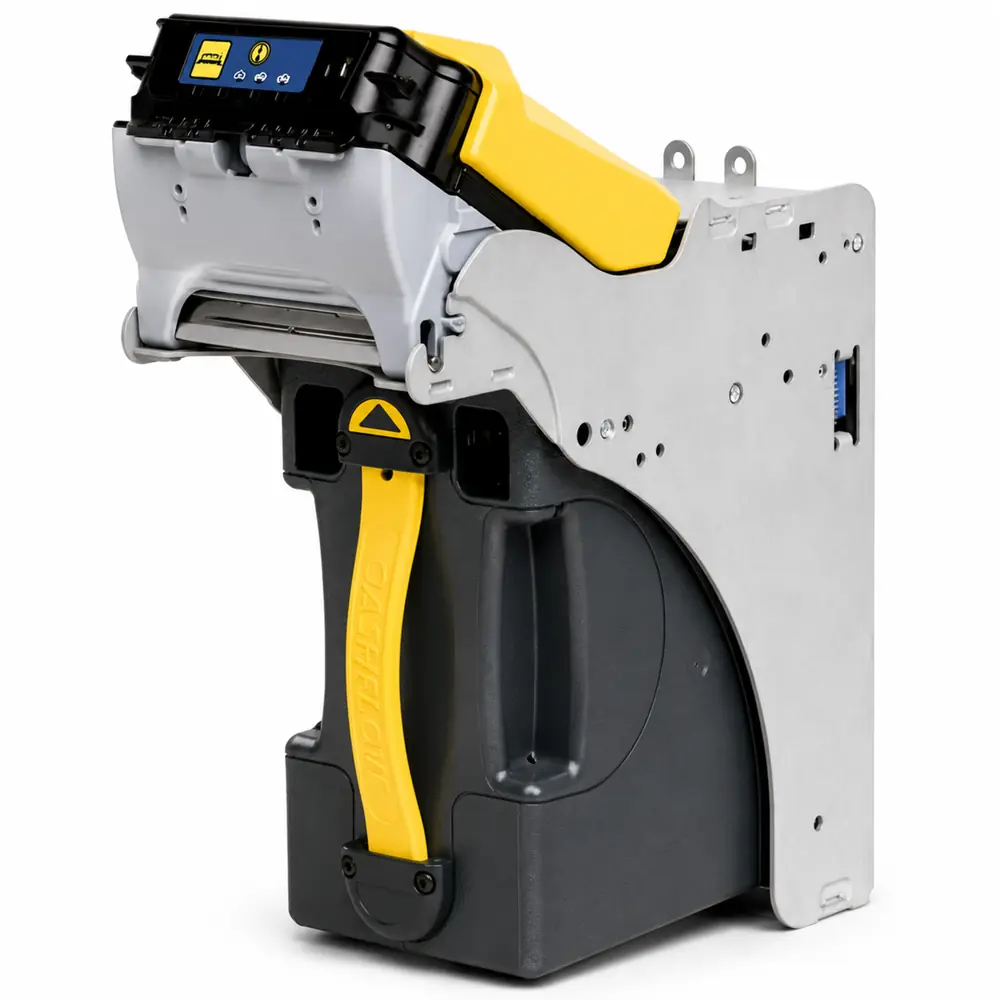

MEI SCNM6604 OPTO SC Advance Note Validator Unit Pack
The MEI SCNM6604 OPTO is an SC Advance™ banknote validator configured with an OPTO communication interface and supplied in a unit pack. It is built for gaming equipment, kiosks, retail systems, vending machines, and other unattended payment platforms requiring dependable note and barcode ticket acceptance. E & D Trading supplies this genuine Crane MEI unit to OEM builders, integrators, and route operators requiring factory-configured validation hardware.
Specifications
- Product type: Banknote validator
- Manufacturer/brand: Crane MEI
- Series: SC Advance™
- Model: SCNM6604 OPTO
- Configuration: SCNM66
- MPN: 252304045P1
- SKU: SCNM6604OPTO
- Communication interface: OPTO
- Package type: Unit Pack
- Condition: New
- Acceptance rate: 98% or greater
- Currency support: Over 140 global currencies
- Note insertion: Four-way acceptance
- Note width range: 62 mm–83 mm
- Note length range: 120 mm–166 mm
- Escrow capacity: One note or one barcode coupon
- Processing speed: Approximately 2.3 seconds
- Validation: Full spectral note recognition with advanced anti-fraud protection
- Transport: Sealed note path and anti-skew technology
- Other functions: Barcode ticket acceptance, fast processing, firmware updates, and low-maintenance operation
- Operating temperature: 0°C to 60°C
- Storage temperature: -30°C to 70°C
- Humidity: 5% to 95% non-condensing
- Input voltage: 12V–28VDC
- Standby power consumption: 10 watts
- Accepting power consumption: 30 watts
- Peak power consumption: 70 watts
- Construction: Durable industrial design with enhanced security features
Compatible platforms
This validator is suited to gaming machines, kiosk equipment, retail payment systems, vending machines, and unattended payment applications. Its four-way insertion capability and support for note widths from 62 mm to 83 mm accommodate a broad range of supported currencies and ticket media.
Integration notes
Confirm that the host equipment provides an OPTO interface and accepts 12V–28VDC input before installation. The unit supports one-note or one-barcode-coupon escrow, while the sealed transport path helps limit service exposure. Firmware updates and currency configuration should be handled using the appropriate MEI service procedures.
Ordering & support
E & D Trading is an authorized reseller of Crane MEI validation equipment. Request a same-day quote for volume requirements, and contact E & D Trading for freight coordination and application assistance.
Product details
| Brand | MEI |
|---|---|
| Category | Bill Acceptor |
| Part number / SKU | SCNM6604OPTO |
| Compatible with / keywords | Mei |
