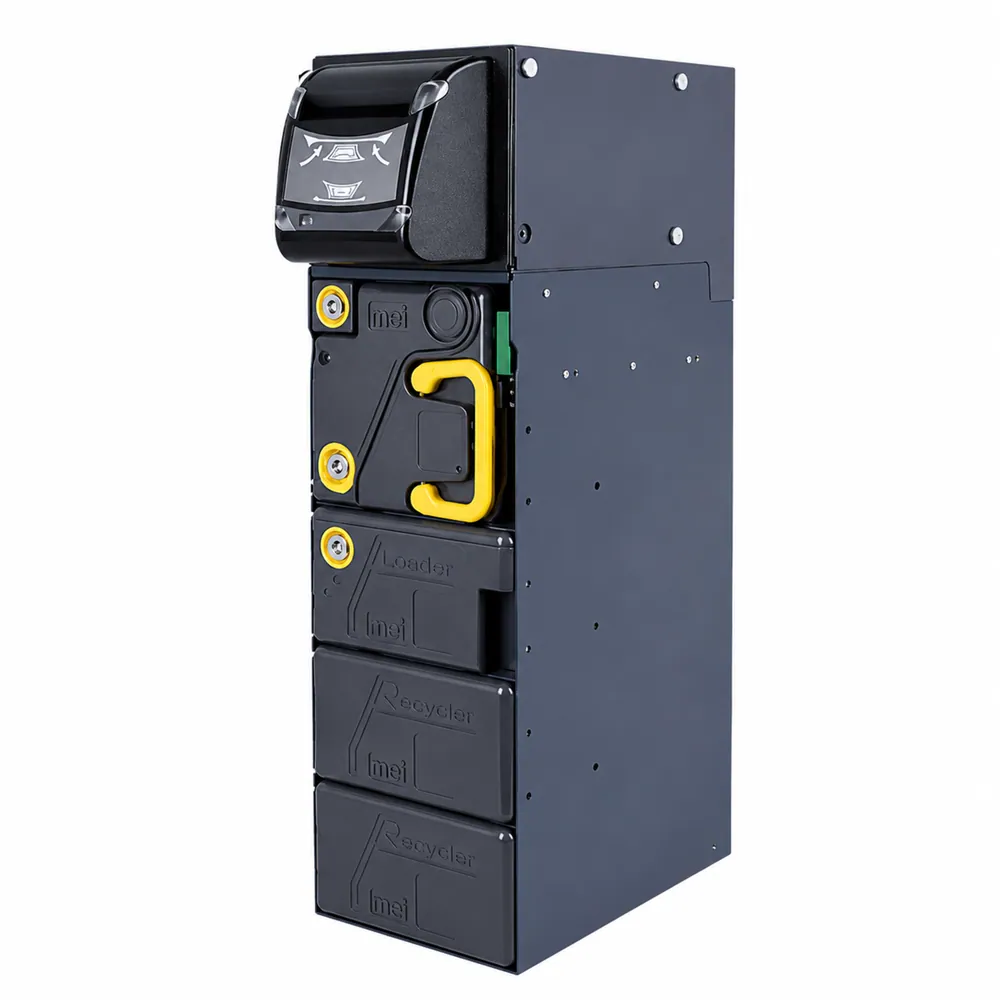

MEI BNR412 S Full Unit Main Module B2 with Chassis Banknote Recycler
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
- 30+ years serving operators
- Real technical support by phone
- Fast U.S. shipping
Description
Keep your machines earning with the MEI BNR412 S Full Unit Main Module B2 with Chassis Banknote Recycler. E&D Trading supplies this MEI bill acceptor to arcades, route operators and vending businesses across the U.S.
MEI BNR412 S Full Unit Main Module B2 with Chassis
The MEI BNR412 S Full Unit is a complete BNR Advance banknote recycler assembly supplied with the B2 main module and chassis. It is configured for cash-handling equipment requiring optical note validation, closed-loop recycling, and USB communication. E & D Trading supplies this new Crane MEI assembly to OEM builders, system integrators, and route operators as an authorized distributor.
Specifications
- Manufacturer: MEI / Crane MEI
- Model: BNR412 S; BNR series
- Product type: Full-unit banknote recycler
- Configuration: B2 main module with chassis assembly
- Recycling capacity: Up to 6 recycled denominations
- Note memory: Up to 150 notes, four ways
- Validation: Optical sensors with a 98% or higher acceptance rate
- Supported note range: 60–83 mm width and 120–190 mm length
- Interface: USB
- Closed dimensions: 604 mm × 165 mm × 275 mm
- Open dimensions: 604 mm × 165 mm × 336 mm
- Operating temperature: 0°C to 60°C
- Storage temperature: -40°C to 70°C
- Operating humidity: 15% to 95% relative humidity
- Power: 24VDC (-10% / +20%)
- Current consumption: 0.5A standby; 8A while accepting
- Remote updates: Firmware and note-set software updates
- Condition: New
Compatible platforms
This assembly is intended for equipment built around the MEI BNR Advance banknote recycling platform. The full-unit format combines the BNR412 S B2 electronics and chassis for installations that require a complete recycler module rather than an individual replacement component.
Integration notes
System wiring must provide 24VDC within the specified tolerance and accommodate the 8A acceptance current draw. Allow clearance for the open height of 336 mm during service access. USB communication supports remote firmware and note-set updates; currency configuration and denomination selection should be verified against the host system before commissioning.
Ordering & support
E & D Trading supplies the genuine MEI BNR412 S full unit under SKU BNR412SB2Ch. Same-day quotes are available for volume requirements, with freight coordination available for OEM and service orders.
Product details
| Brand | MEI |
|---|---|
| Category | Bill Acceptor |
| Part number / SKU | BNR412SB2Ch |
| Compatible with / keywords | Mei |
