ICT WEL-RL705-1 Cable
SKU: WEL-RL705-1
- 30+ years serving operators
- Real technical support by phone
- Fast U.S. shipping
Description

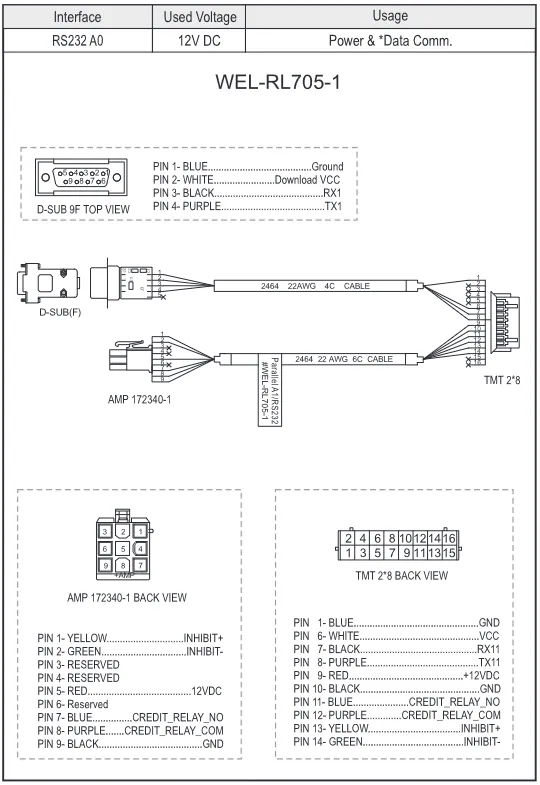

WEL-RL705-1 RS232 A0 Interface
| Interface | Used Voltage | Usage |
|---|---|---|
| RS232 A0 | 12V DC | Power & Data Communication |
WEL-RL705-1 Pin Configuration
- PIN 1 - BLUE ...... Ground
- PIN 2 - WHITE ...... Download VCC
- PIN 3 - BLACK ...... RX1
- PIN 4 - PURPLE ...... TX1
D-SUB 9F (Top View) Pin Configuration
AMP 172340-1 Pin Configuration
- PIN 1 - YELLOW ...... INHIBIT+
- PIN 2 - GREEN ...... INHIBIT-
- PIN 3 - RESERVED
- PIN 4 - RESERVED
- PIN 5 - RED ...... 12VDC
- PIN 6 - RESERVED
- PIN 7 - BLUE ...... CREDIT_RELAY_NO
- PIN 8 - PURPLE ...... CREDIT_RELAY_COM
- PIN 9 - BLACK ...... GND
