ICT WEL-RBG08 Cable

Description

The ICT WEL-RBG08 Cable is a proven bill acceptor cables from ICT, available now through E&D Trading with fast nationwide shipping.

ICT WEL-RBG08 Cable — MDB Box-to-VMC Interface Cable

The ICT WEL-RBG08 is a 35cm cable assembly for power and MDB data communication between an MDB box and a vending machine controller (VMC). E & D Trading supplies this genuine ICT cable to OEM builders, route operators, and service technicians working with compatible vending, kiosk, and amusement equipment.

Specifications

• SKU: WEL-RBG08
• Operating range: 20V–42.5V DC
• Length: 35cm
• Cable: 2464 22 AWG 5-core
• Connectors: Molex 5559-06P, Molex 5557-06R, and JAM 10P
• Function: MDB power and data communication

Compatible platforms

Fitment includes ICT L70, L70F, L70T, L77F, L77T, L83, and TK77 platforms when the specified MDB box-to-VMC connection is required.

Integration notes

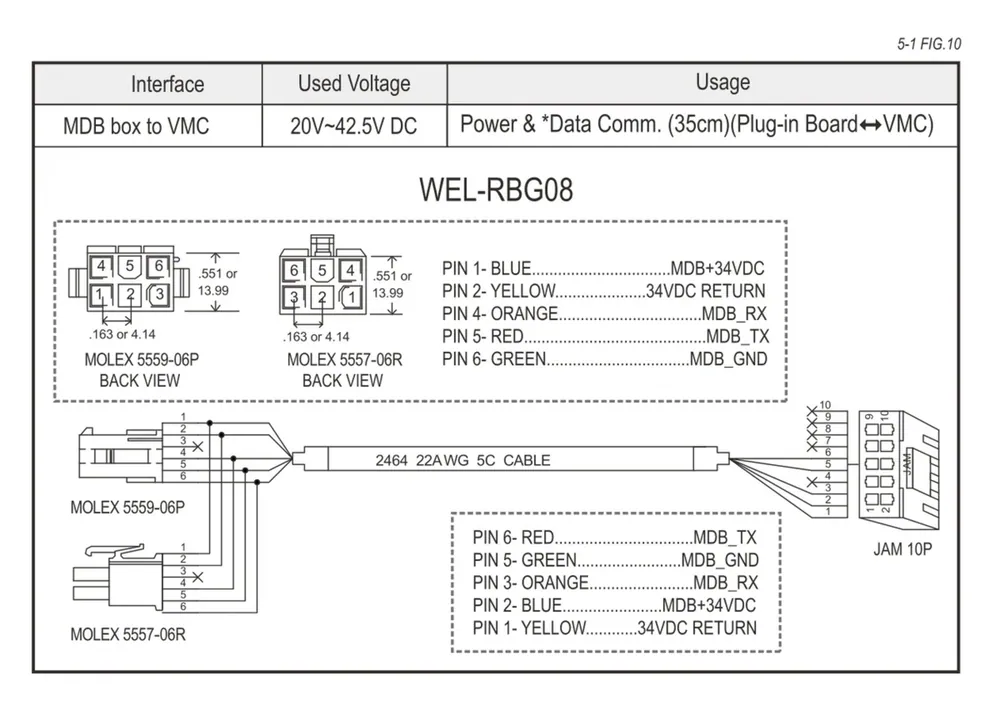

For the Molex 5559-06P/5557-06R connection, pin assignments are: pin 1 blue, MDB +34V DC; pin 2 yellow, 34V DC Return; pin 4 orange, MDB RX; pin 5 red, MDB TX; and pin 6 green, MDB GND. On the JAM 10P connector, pin 1 is yellow, 34V DC Return; pin 2 blue, MDB +34V DC; pin 3 orange, MDB RX; pin 5 green, MDB GND; and pin 6 red, MDB TX. Verify connector orientation and wiring before installation.

Ordering & support

E & D Trading is an authorized distributor for ICT replacement and integration hardware. Contact the distributor for same-day volume quotes and freight coordination.

Product details

Why order from E&D Trading

Not sure it fits your equipment? Call our technicians and we will confirm harness, voltage and protocol compatibility before it ships. Questions? Call 877-922-6707.
