Description
E&D Trading stocks the ICT WEL-R7U02 Cable for operators who need a dependable bill acceptor cables that ships fast and works right out of the box.

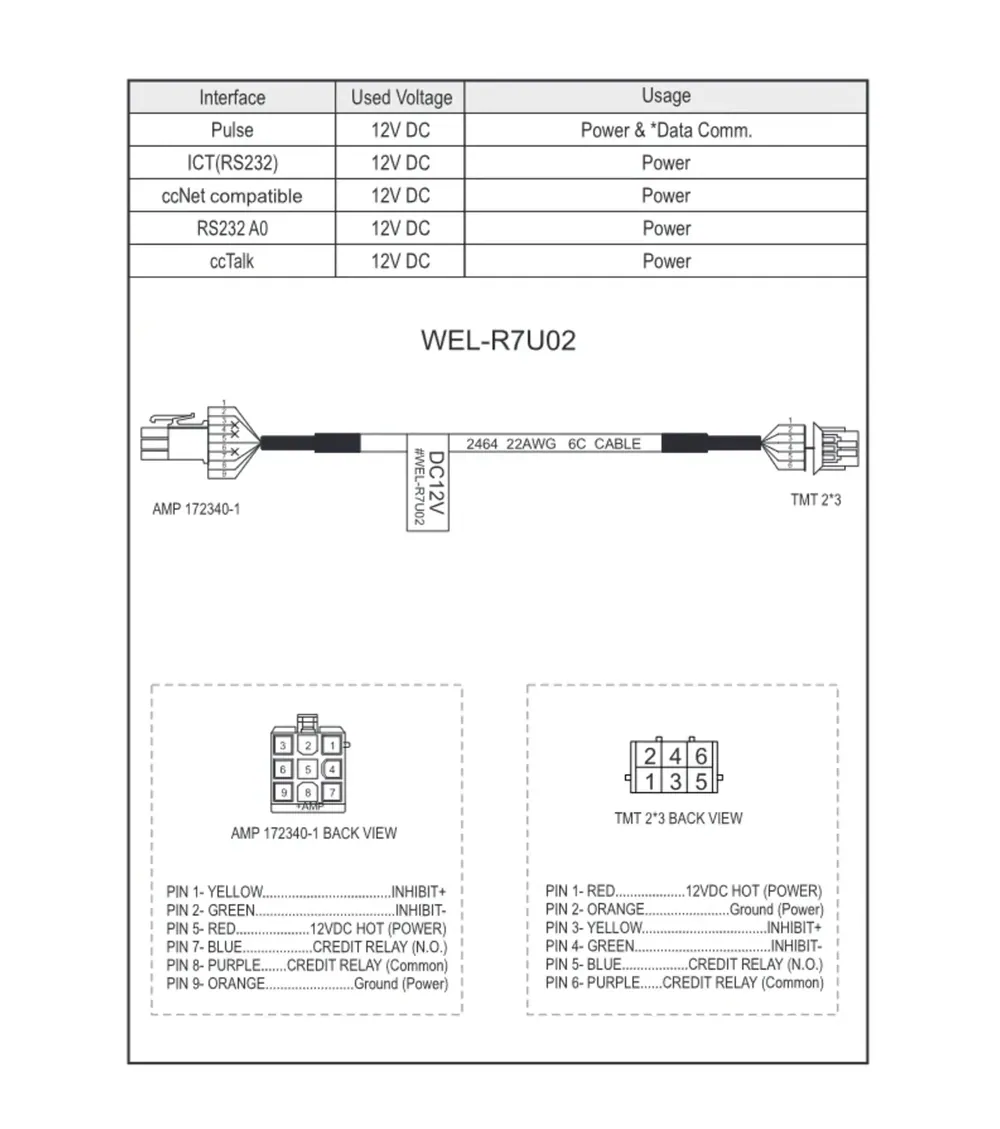

ICT WEL-R7U02 Cable — 12 V DC Bill Acceptor Interface
The ICT WEL-R7U02 is a 12 V DC interface cable for power and data communication with compatible ICT bill acceptors. It supports Pulse, RS232, ccNet, RS232 A0, and ccTalk protocols, giving OEM integrators and route technicians a practical wiring option. E & D Trading supplies this ICT cable as an authorized distributor for service and installation requirements.
Specifications
- Part number: WEL-R7U02
- Voltage: 12V DC
- Protocols: Pulse, RS232, ccNet, RS232 A0, and ccTalk
- Cable: 2464 22AWG 4C CABLE
- Connector: D-SUB(F)
Compatible platforms
This cable is listed for ICT L70, L70F, L70T, L77F, L77T, and L83 bill acceptor platforms.
Integration notes
The 2-BA-RNK10 interface uses 12V DC for RS232 or ICT Protocol data communication. On the D-SUB 9F top view, pin 2 is TXD, pin 3 is RXD, and pin 5 is GND. The TMT 24 back-view wiring assigns pin 1 blue to Ground, pin 2 purple to TX1, pin 3 black to RX1, and pin 6 white to Download VCC.
Ordering & support
E & D Trading provides the ICT WEL-R7U02 for replacement, integration, and service work. Same-day quotes are available for volume requirements, with freight coordination available for qualifying orders.
Product details
| Brand | ICT |
|---|---|
| Category | Bill Acceptor Cables |
| Part number / SKU | WEL-R7U02 |
| Compatible with / keywords | Cables & Harnesses, ICT Cables & Harnesses, L70, L70F, L70T, L77F, L77T, L83 |
