Description
E&D Trading stocks the ICT WEL-R061 Cable for operators who need a dependable bill acceptor cables that ships fast and works right out of the box.
ICT WEL-R061 Cable — Parallel A1 Extension Cable
The ICT WEL-R061 is a 12V DC Parallel A1 extension wire for the WEL-RL701 bill acceptor assembly. E & D Trading supplies this ICT cable to OEM builders, integrators, and route-service technicians requiring the specified harness and connector configuration.
Specifications
- SKU: WEL-R061
- Interface: Parallel A1
- Used voltage: 12V DC
- Usage: Extension wire for WEL-RL701
- Connector type: MOLEX 7066G6P
- Part number: 172161-1
- Dimensions: 0.551 inches
- Associated components: A.M.P, CAP, FS2, WEL-033-1, SPIN IGT, CN3, F51
Compatible platforms
Fitment is listed for ICT L70, L70F, L70T, L77F, L77T, and L83 platforms.
Integration notes

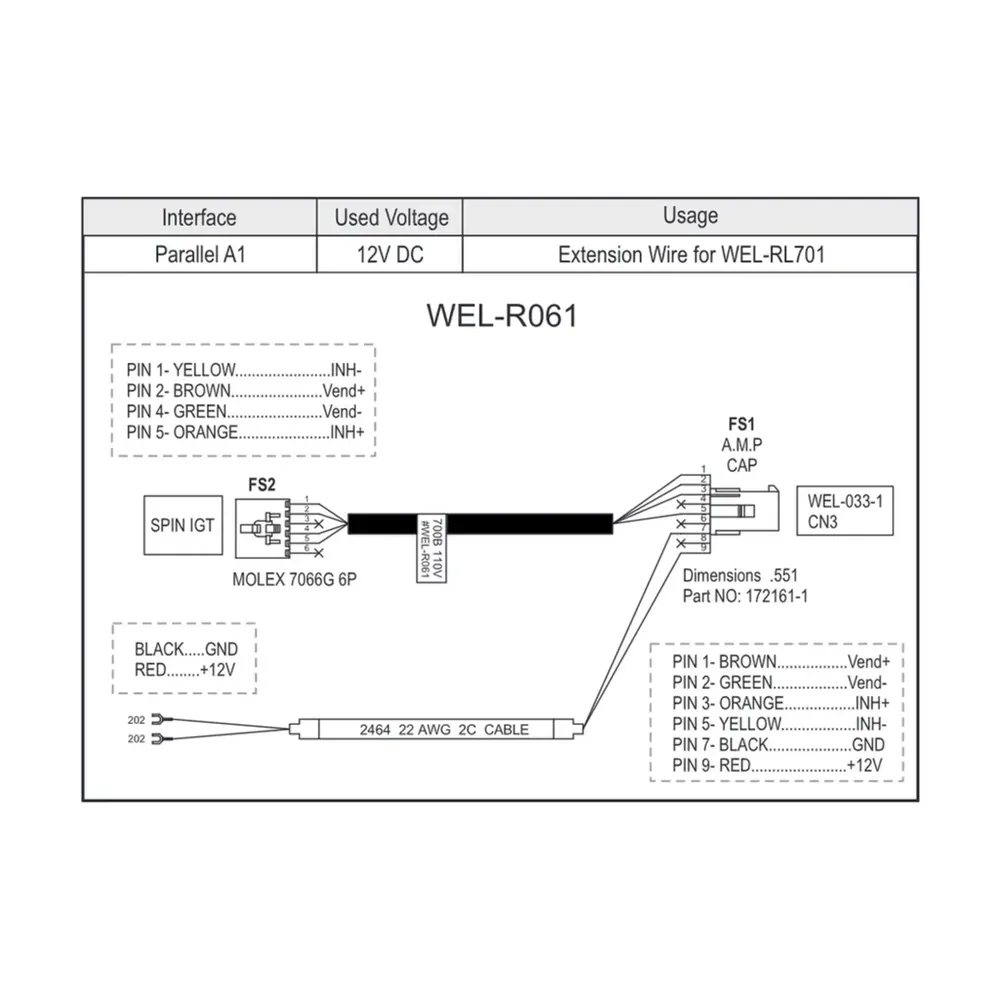

The WEL-R061 pin configuration is PIN 1 yellow, PIN 2 brown, PIN 4 green, and PIN 5 orange. The MOLEX 7066G6P configuration is as follows:
| Pin | Color | Function |
| BLACK | BLACK | GND |
| PN 1 | BROWN | N/A |
| RED | RED | +12V |
| PN 2 | GREEN | Vend- |
| PN 3 | ORANGE | N/A |
| PN 5 | YELLOW | N/A |
| PN 7 | BLACK | GND |
| PN 9 | RED | +12V |
Ordering & support
E & D Trading is an authorized ICT distributor and reseller. Volume quotations and freight coordination are available for production, retrofit, and service requirements.
Product details
| Brand | ICT |
|---|---|
| Category | Bill Acceptor Cables |
| Part number / SKU | WEL-R061 |
| Compatible with / keywords | Cables & Harnesses, ICT Cables & Harnesses, L70, L70F, L70T, L77F, L77T, L83 |
